Fraction Collector

NEW PRODUCT

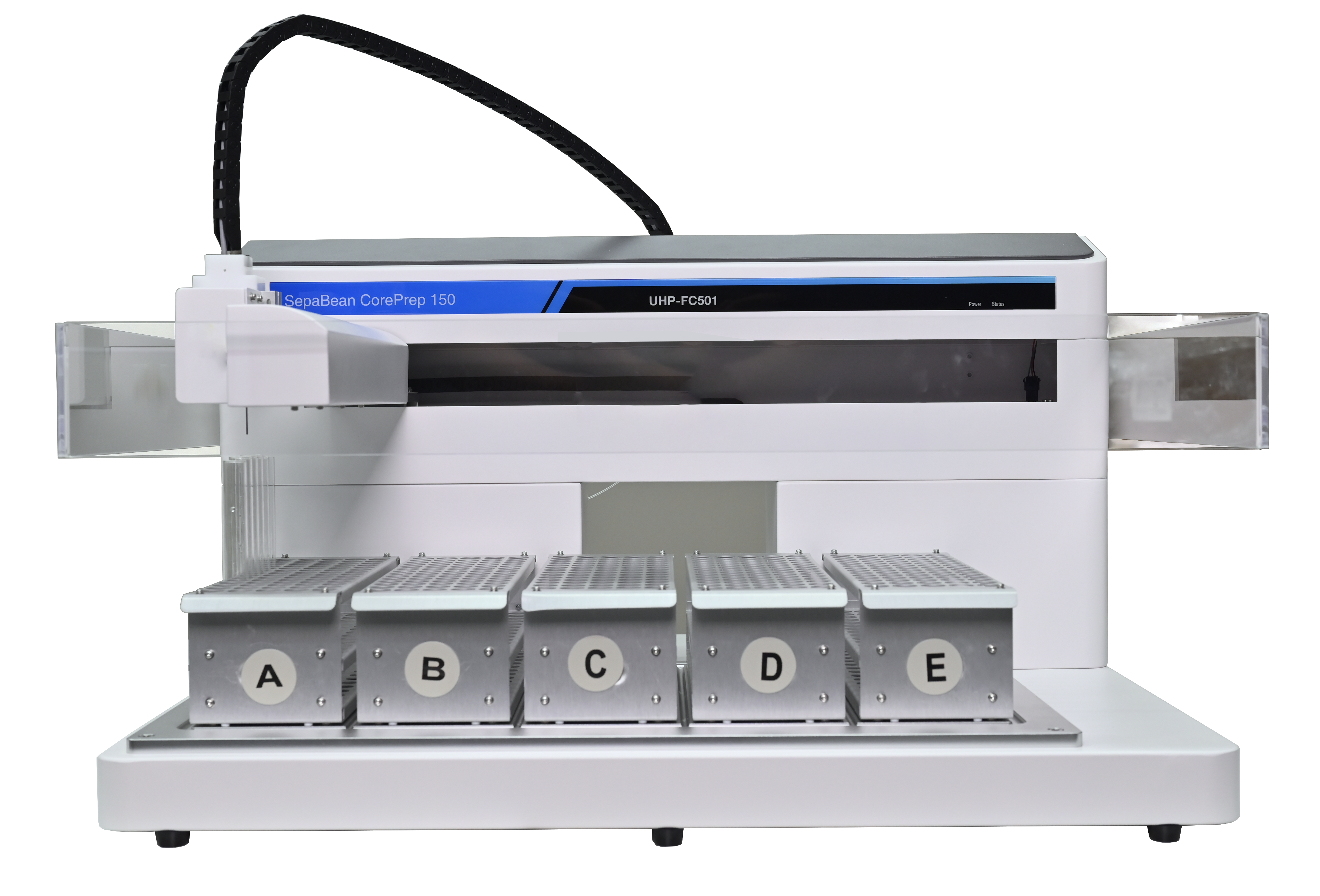

SepaBean™ CorePrep 150 - High Pressure Fraction Collector

• Compact and Independent Design: Supports up to 5 test tube racks without interference, ensuring efficient use of space.

• Flexible Compatibility: Accommodates 13 mm, 16 mm, and 18 mm test tubes, easily selectable to fit different application needs.

• Accurate Flow Control: Optimized pipeline design minimizes delay and dead volumes, reducing sample diffusion and ensuring precise collection.

• High-Precision Switching: Equipped with a robust three-way valve, the system enables reliable position switching while keeping waste and collection channels independent, ensuring leak-free operation and high recovery rates.

SepaBean_CorePrep_Fraction_Collector_UHP-FC501

Request a Quote Talk to a Specialist

Fraction Collector Specifications

Characteristics	Specifications
Part Number	UHP-FC501
Description	Two-dimensional automatic fraction collection device, supporting up to 5 test tube racks, compatible with test tubes of various sizes (13 mm, 16 mm, 18 mm) with a maximum test tube height of 180 mm
Dimensions (H x W x D)	680 x 837 x 658 mm
Flow Rate Range	0 - 150 mL/min
Power Supply	100 - 240 V AC, power 75 W
Sample Rack Capacity	• 13 x 100 mm, 9 mL, 96 wells • 16 x 100 mm, 15 mL, 75 wells • 18 x 150 mm, 25 mL, 70 wells (The maximum test tube height supported is 180 mm)
Supported Racks	Supports up to 5 test tube racks
Switching Speed	Switching speed reaches a maximum of 0.1 seconds
Weight	45 kg (99 lbs)
