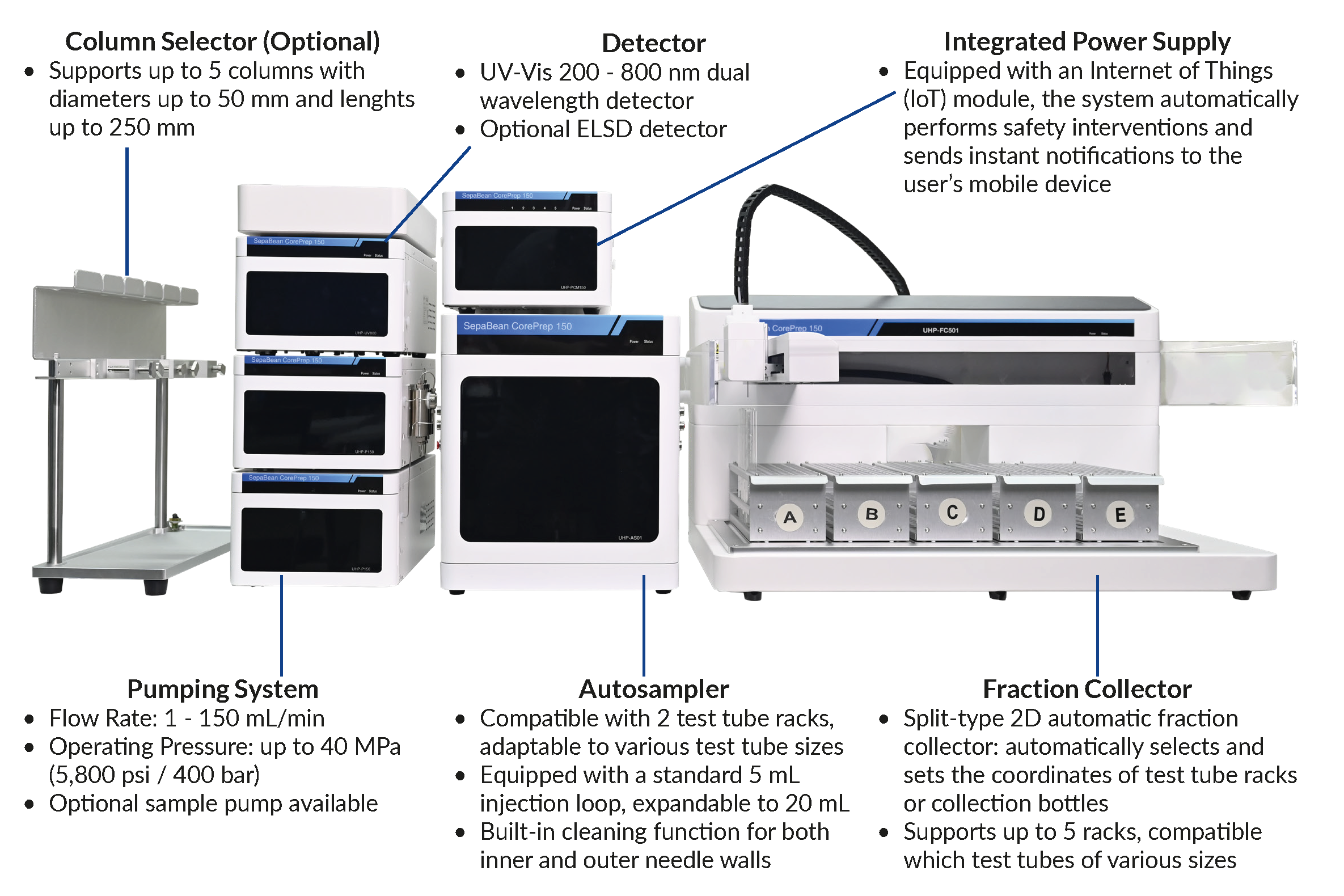

SepaBean™ CorePrep 150 - Complete Set Overview
The SepaBean™ CorePrep 150 combines high-pressure pumping, precise detection, automated injection, and accurate fraction collection. With an optional column selector and Internet of Things (IoT) connectivity, its modules work seamlessly to deliver reliable and efficient purification.
Complete Set Specifications
| Characteristics | Specifications |
|---|---|
| Part Number | SPBUHP150 |
| Description | SepaBean™ CorePrep 150 - Ultra-high Pressure Liquid Chromatography System, Complete Set. Maximum flow rate: 150 mL/min. Compatible with 200 - 800 nm UV dual-wavelength detector. Maximum pressure resistance: 40 MPa (5,800 psi / 400 bar) |
| Included in the Complete Set | The SepaBean™ CorePrep 150 - Complete Set comes with two pumping systems, a UV-Vis detector, an autosampler, a fraction collector, and an integrated power supply with communication module. Available Options: for greater flexibility, the system can be extended with a column selector (up to 5 preparative columns) and an ELSD detector. |
| Control Device | External PC with intuitive control software |
| Dimensions (H x W x D) | 580 x 1,750 x 660 mm (excluding column selector module) |
| Flow Rate Range | 0 - 150 mL/min |
| Power Supply | 220 V AC, total power 1,000 W |
| Operating Pressure | ≤ 40 MPa (≤ 5,800 psi / ≤ 400 bar) (316 L Pump Head) |
| Tubing Connection | 1/16” standard pipe connection |
| Weight | 155 kg (342 lbs), excluding column selector module |
