Autosampler (Injector)


NEW PRODUCT

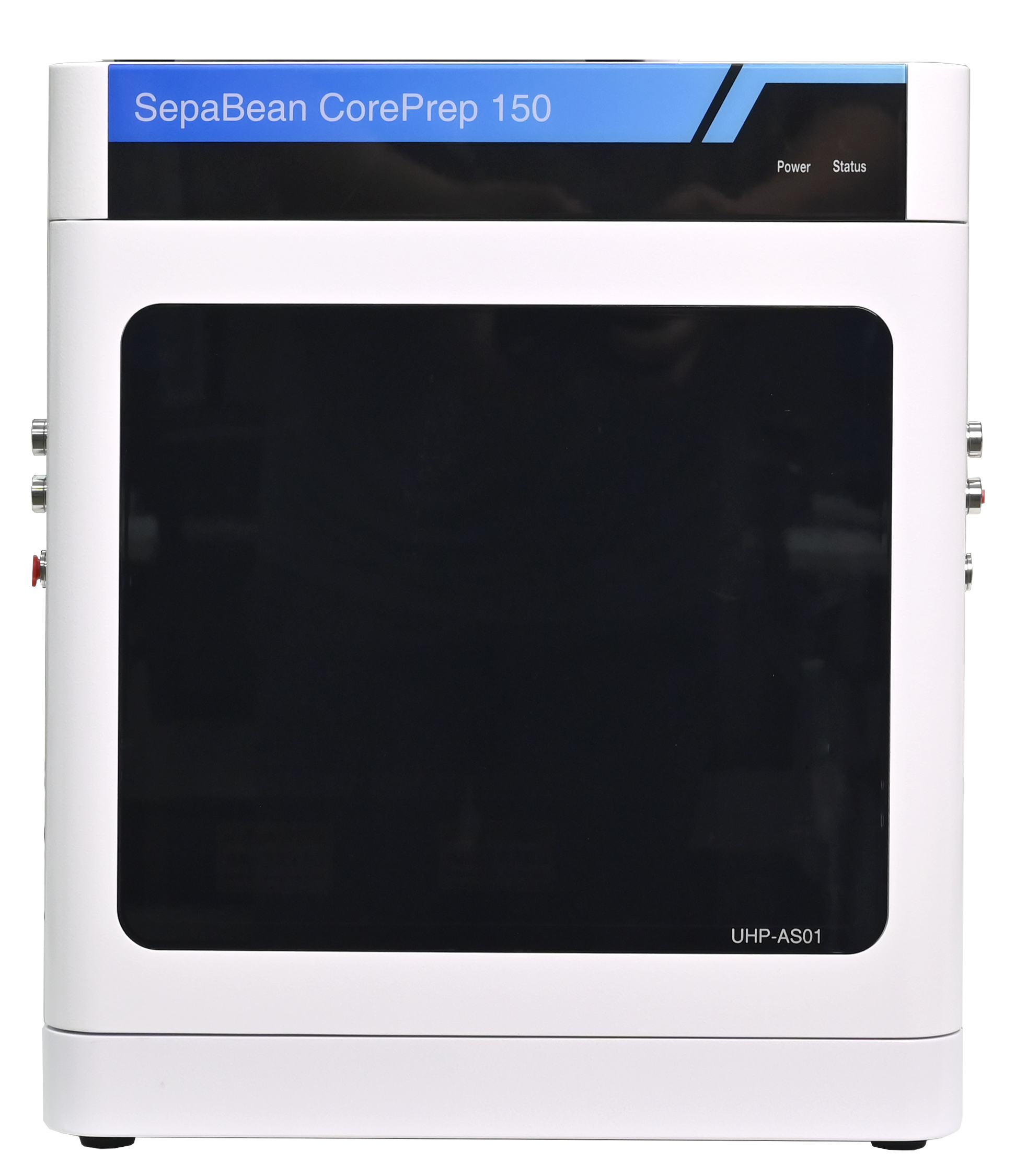

SepaBean™ CorePrep 150 - High Pressure Autosampler















  • • Flexible Tube Rack Design: Compatible with 5 mL, 9 mL, and 15 mL sample tubes, offering versatile combinations.

  • • Independent Injection Module: Operates separately from the collection process, enabling both single injections and repeated stacking without delays.

  • • Wide Injection Range: Adjustable volumes from 100 μL to 10 mL (± 1 μL) with precise control; injection speed can scale from small to large volumes within 30 seconds.

  • • High Reproducibility: Residual injection rate below 0.01 % ensures accurate performance even with complex samples.

  • • Expandable Capacity: Reserved switching port supports larger sample injections, extending the range up to 100 μL - 20 mL.



SepaBean_CorePrep_Autosampler_UHP-AS01


 Request a Quote Talk to a Specialist




High Pressure Autosampler Specifications




































































CharacteristicsSpecifications
Part NumberUHP-AS01
DescriptionHigh Pressure Autosampler
Carryover Effect≤ 0.01 %
3-DimensionalXYZ Axis
Dimensions (H x W x D)400 x 340 x 525 mm
Injection Accuracy± 2 %
Injected Dead Volume310 μL
Injection PrecisionRSD ≤ 1 %
Injection TimeThe injection cycle time is 32 seconds for a standard 5 mL injection and 50 seconds for a standard 10 mL injection
Injection Volume100 μL to 5 mL with a standard 5 mL quantitative loop, minimum increment of 1 μL, and can be expanded up to 20 mL
Needle WashThorough cleaning of inner and outer walls of the injection needle
Sample Rack Options


  • • 10 x 75 mm, 5 mL, 112 wells




  • • 13 x 100 mm, 9 mL, 72 wells




  • • 16 x 100 mm, 15 mL, 50 wells




  • • 30 x 100 mm, 40 mL, 6 wells




Power Suppply100 - 240 V AC, power 75 W
Weight35 kg (77 lbs)
