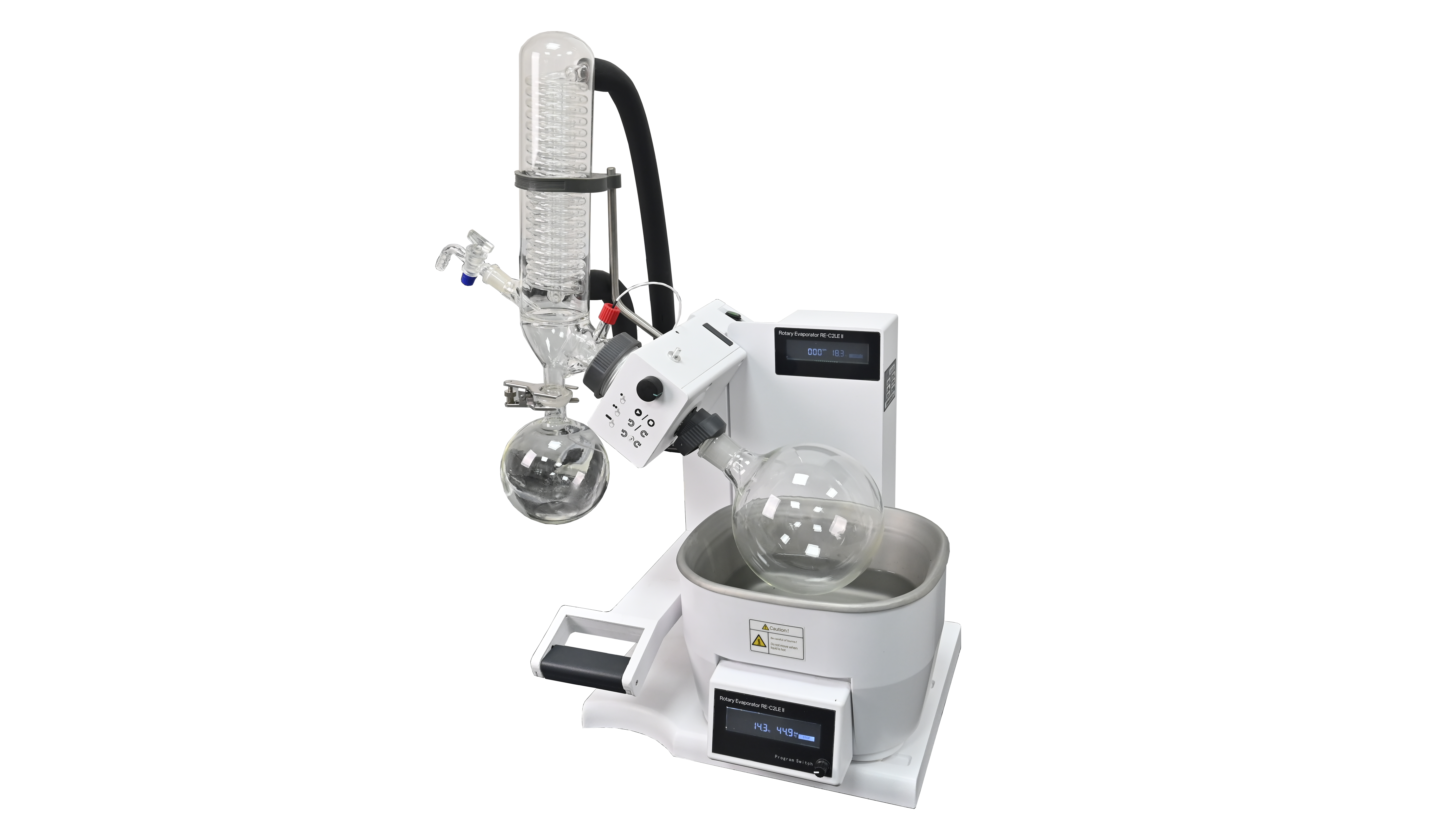

The EvapoBean™ RE-C2LE II Rotary Evaporator provides reliable solutions for solvent evaporation, concentration, and solvent recovery. With a robust mechanical structure, intelligent digital control, and high-efficiency vertical condenser, it delivers stable performance and easy operation for a wide range of laboratory applications. Each unit is designed to ensure consistent results, high safety, and long-term reliability, making it an essential tool for modern laboratories.
• Extended-Speed Rotation Drive (35 - 200 rpm) Rotation Speed: Electronically controlled rotation range optimized for stable thin-film formation and improved evaporation efficiency.
• Motorized Lift with Automatic Safety Response: 180 mm electric lift with automatic flask elevation in case of power interruption to protect heat-sensitive samples.
• High-Efficiency Condensation & Advanced Sealing: Double-spiral vertical condenser and PTFE + fluororubber double sealing system for efficient solvent recovery and reliable vacuum integrity.
• Digitally Controlled Stainless-Steel Heating Bath: Corrosion-resistant bath with precise temperature regulation and integrated overheat protection.
• Integrated Protection Architecture: Motor overcurrent protection, heating bath safety cut-off, and automatic lift protection for safer daily operation.
| Characteristics | Specifications |
|---|---|
| Part Number | RE-C2LE II |
| Description | EvapoBean™ Rotary Evaporator with liquid crystal display, with a flash evaporation volume of 2 L. |
| Bath Heating Power | 4,000 W |
| Bath Material | Stainless steel (304) |
| Bath Size (L x W x H) & Volume | 280 x 260 x 130 mm, 4 L |
| Condenser | Vertical with double serpentine coil with feed valve (19# joint, equivalent to NS 19/26) |
| Display Mode | Digital Display |
| Evaporating Flask Capacity & Joint | From 50 to 2,000 mL, Ø 43 flange joint |
| Heating Power | 1,500 W |
| Lifting Mode, Stroke & Speed | Motorized lift, 180 mm stroke, 10 mm/s |
| Maximum Sample Loading Capacity | 2,000 L |
| Maximum Vacuum | 399.9 Pa (≤ 3 mm Hg, ≈ 0.004 bar) |
| Optimum Ambient Temperature | 5 - 35°C (relative humidity ≤ 65 %) |
| Power | 1,800 W |
| Power Supply | 220 / 240 V, 50 / 60 Hz |
| Pressure Rate | ≤ 2 kPa/h (20 mbar/h, 0.02 bar/h) |
| Receiving Flask Capacity | 1 L |
| Rotation Speed Range | 35 - 200 rpm |
| Rotary Motor Power | 100 W |
| Seiling Material | PTFE material, resistant to most common reagents |
| Temperature Range | Room temperature to 99°C (with water) │ Room temperature to 180°C (with silicone oil) |
| Temperature Precision | ± 1°C |
| Tilt Angle Adjustment Range | 0 - 30°C |
| Dimensions (L x W x H) | 446 × 270 × 490 mm (main unit only, no glassware) 650 x 420 x 900 mm (including glassware and bath) |
| Weight | ~20 kg (~44 lbs) |
